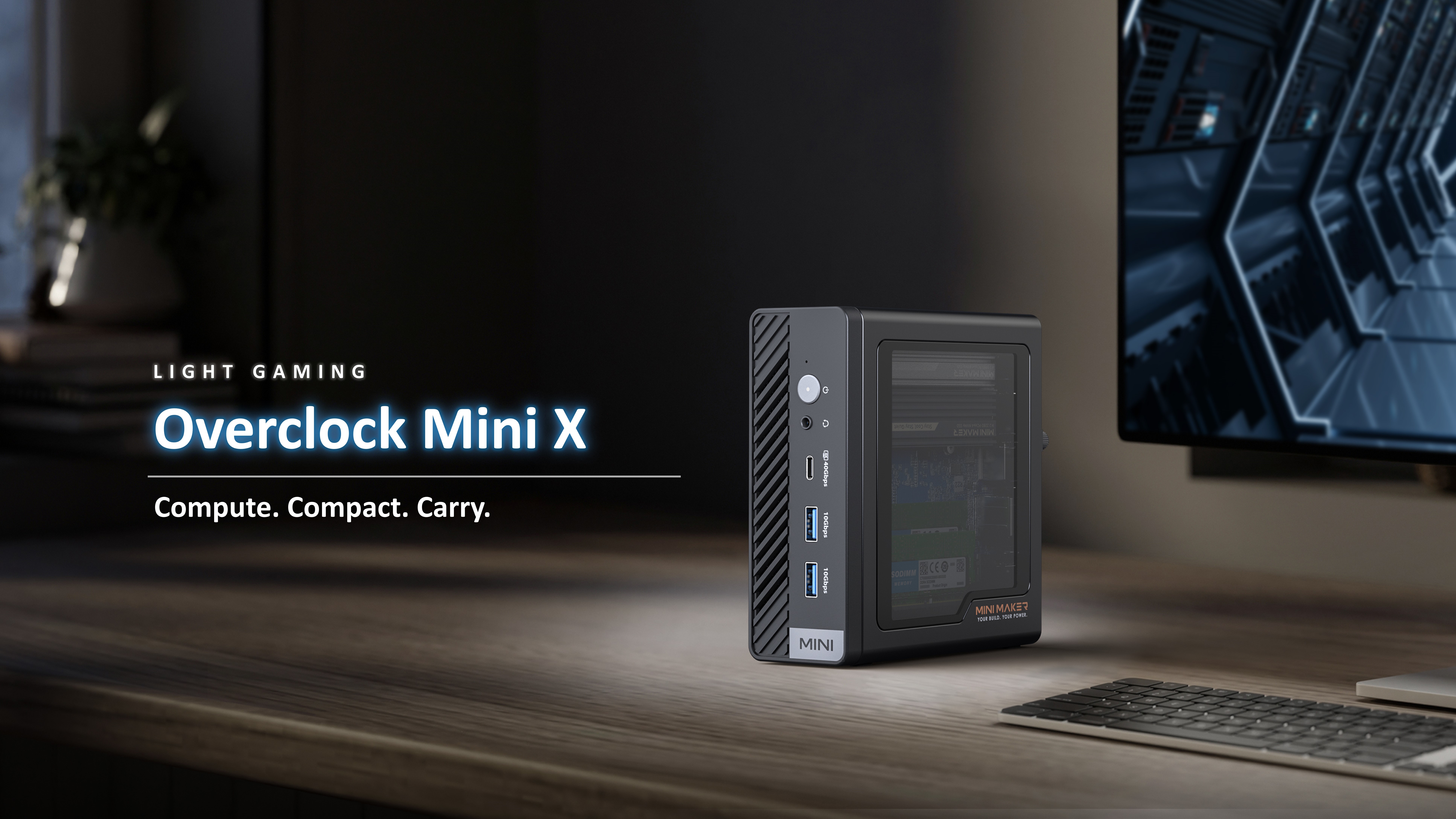

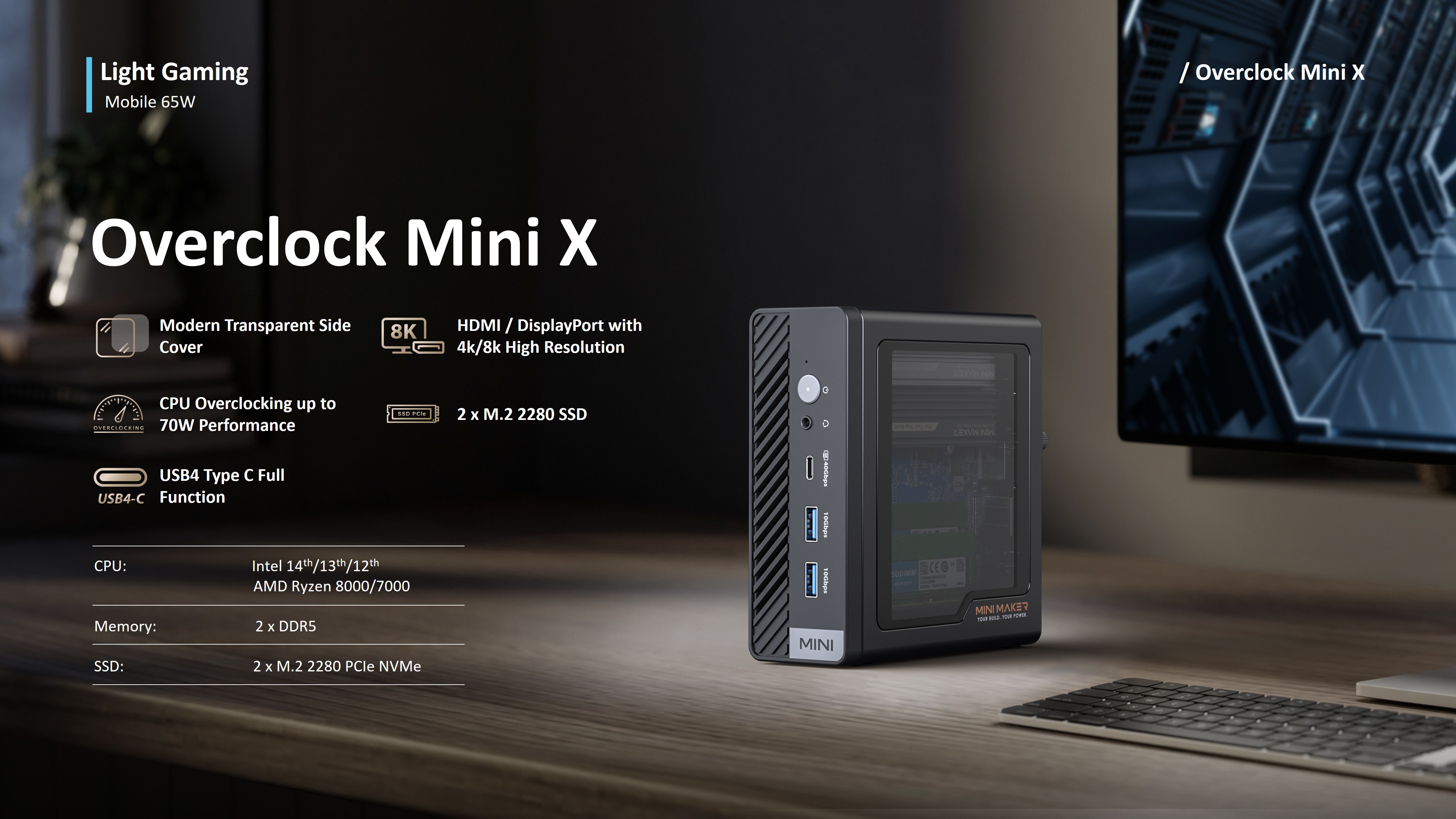

Overclock Mini X

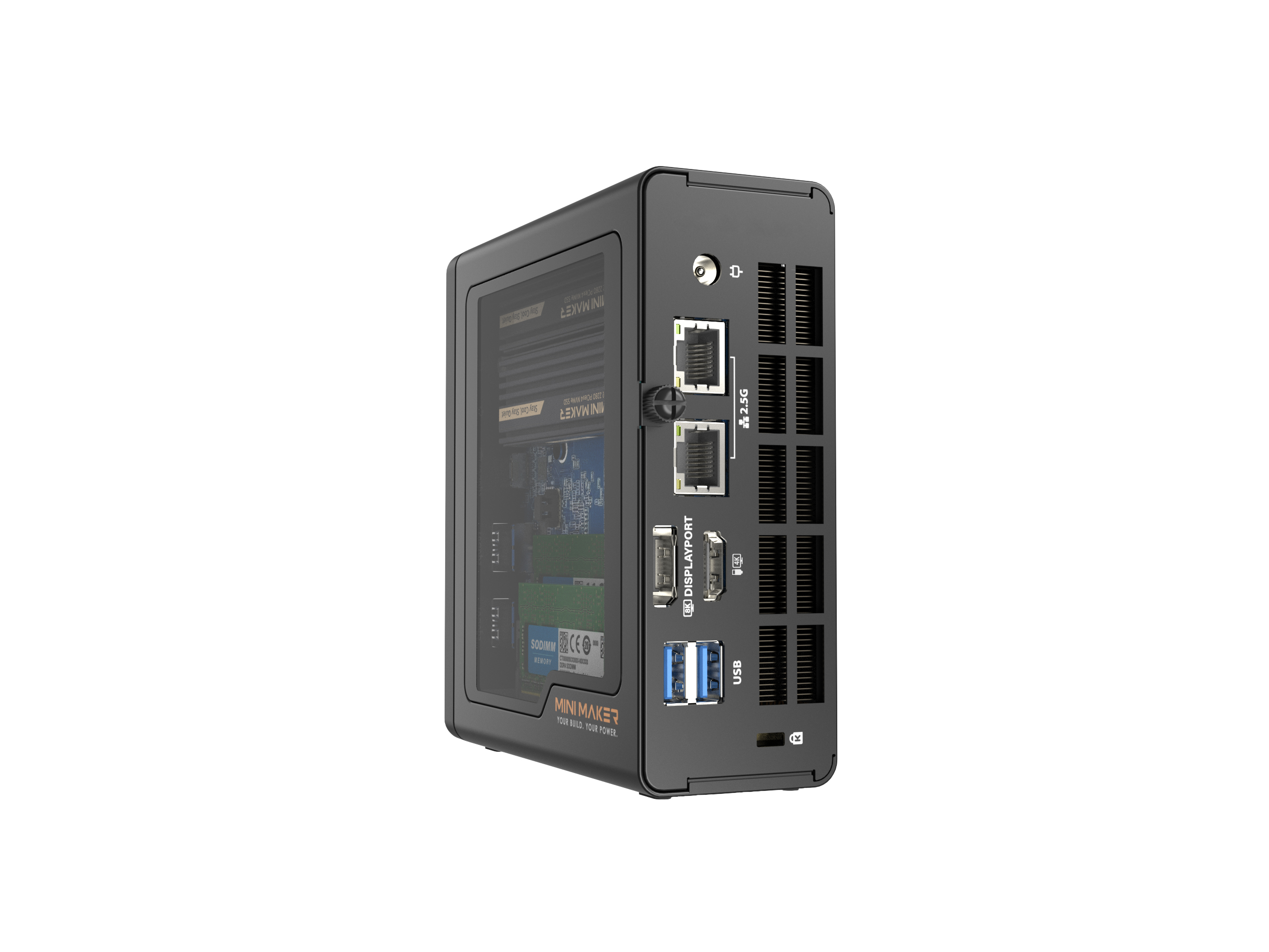

Transparent Cover Desktop PC / CPU Overclock to 65W
  • Size
    Dictionary Book-Size with Super Powerful CPU
  • 65W-70W CPU Overclocking
    Boost your Processing Power for Intensive computing

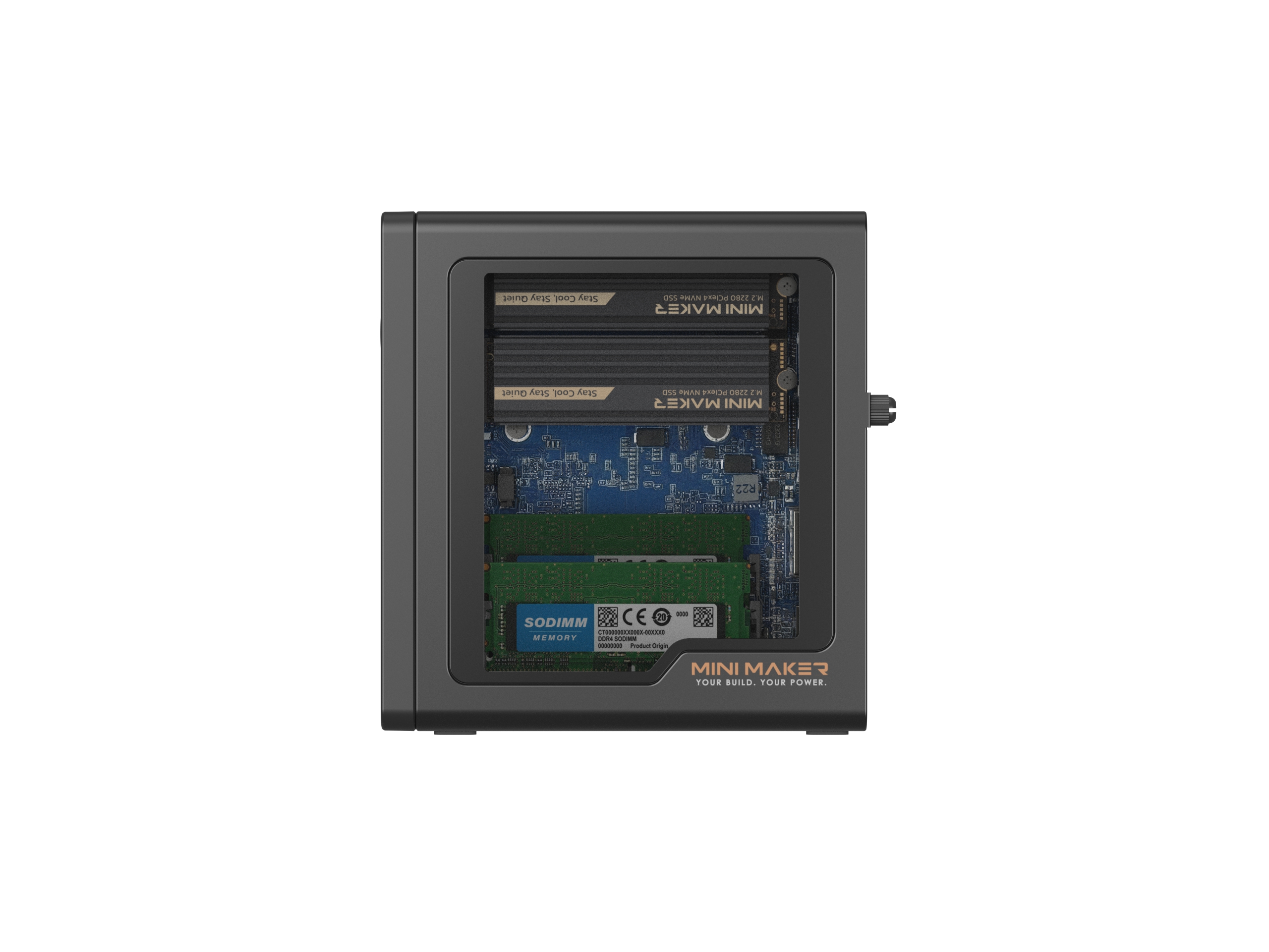

  • Memory and SSD Performance
    Support 2 x DDR5 and 2 x 2280 M.2 SSD
  • Enhance SSD Performance with exclusive SSD Heatsink
    Maintain peak performance with advanced cooling technology without any noise

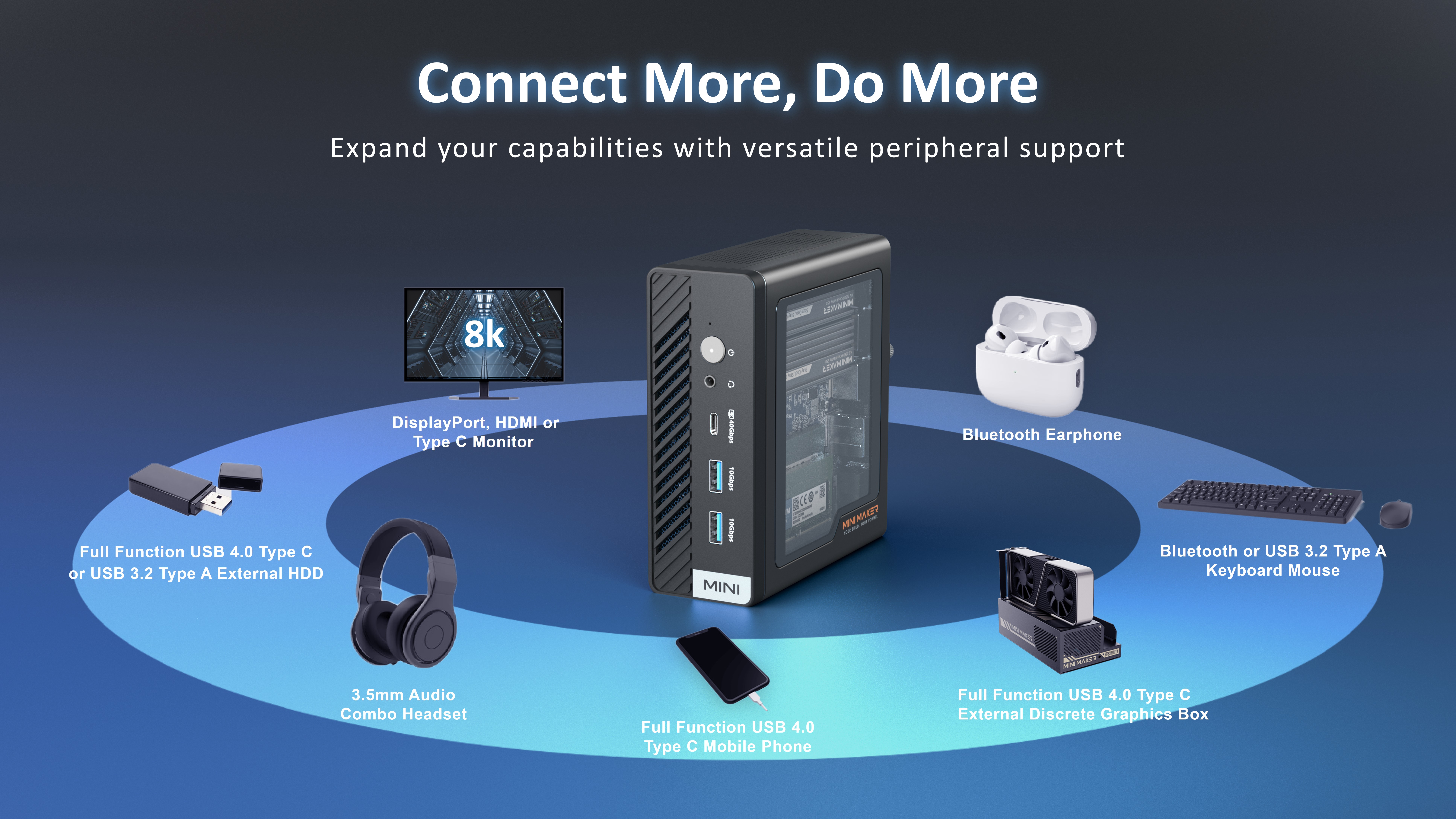

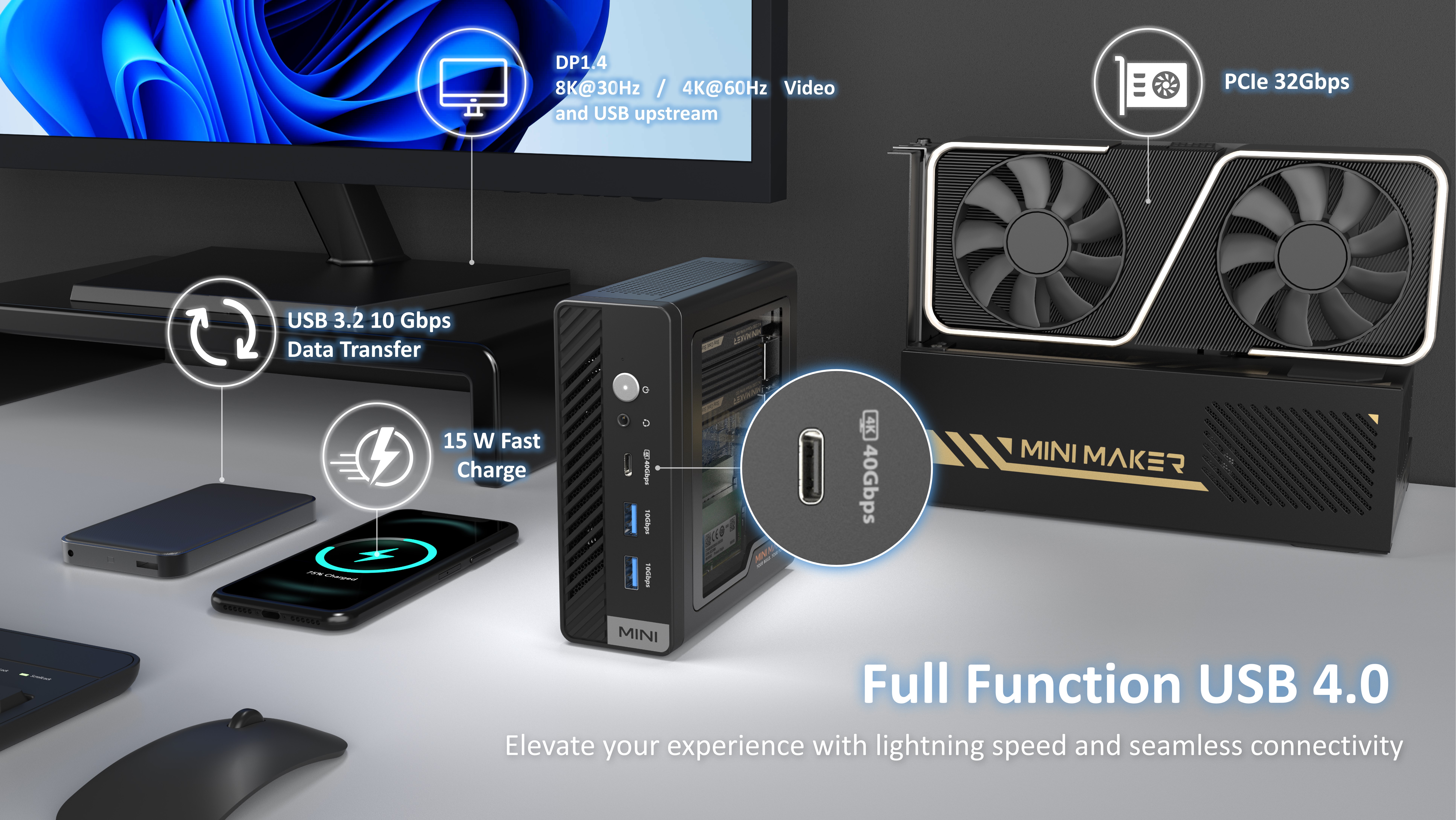

  • Advanced I/O Ports
    Featuring front USB 4.0 Type C and 8K Display Port for unparalleled connectivity and display capabilities.

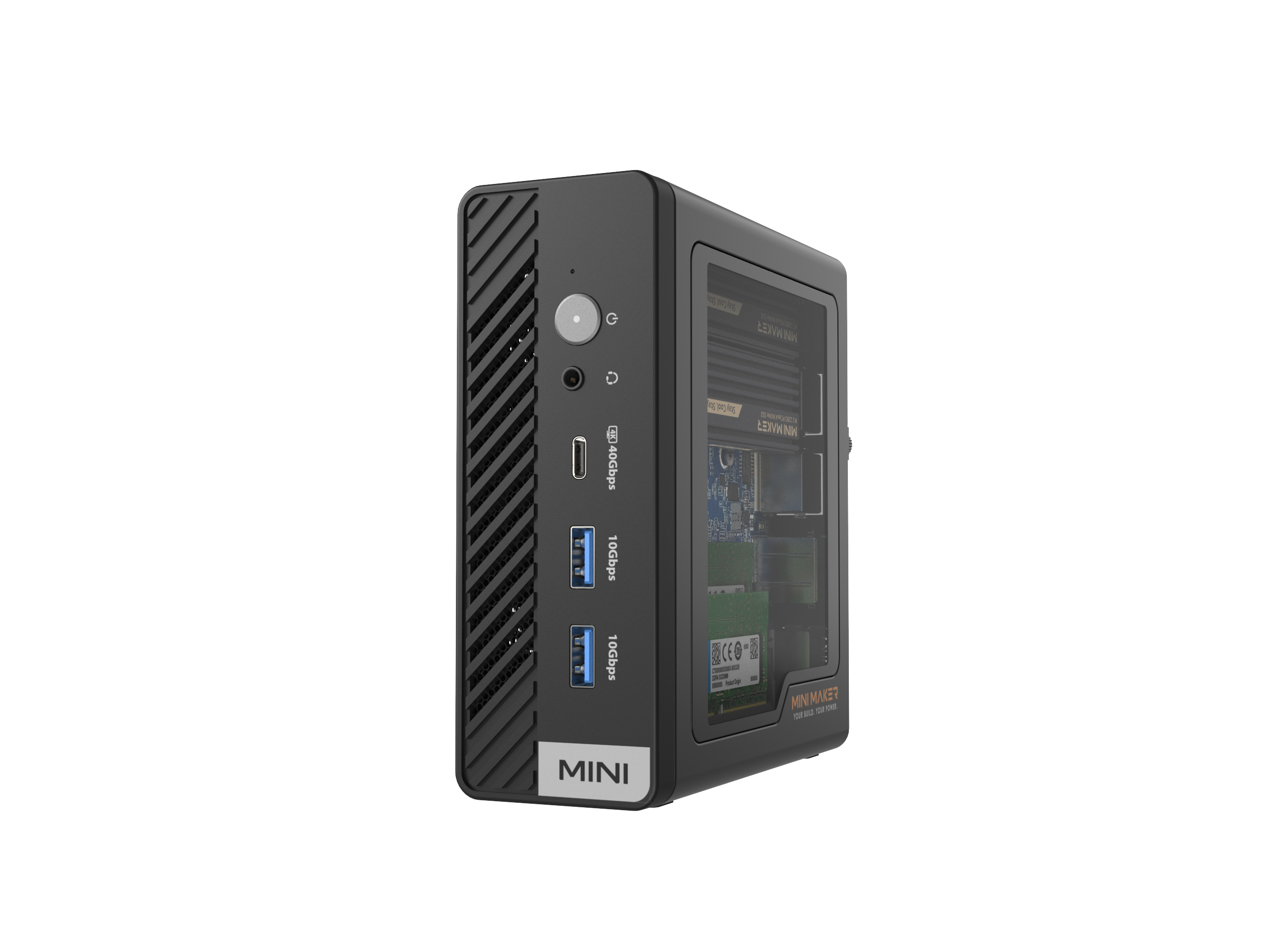

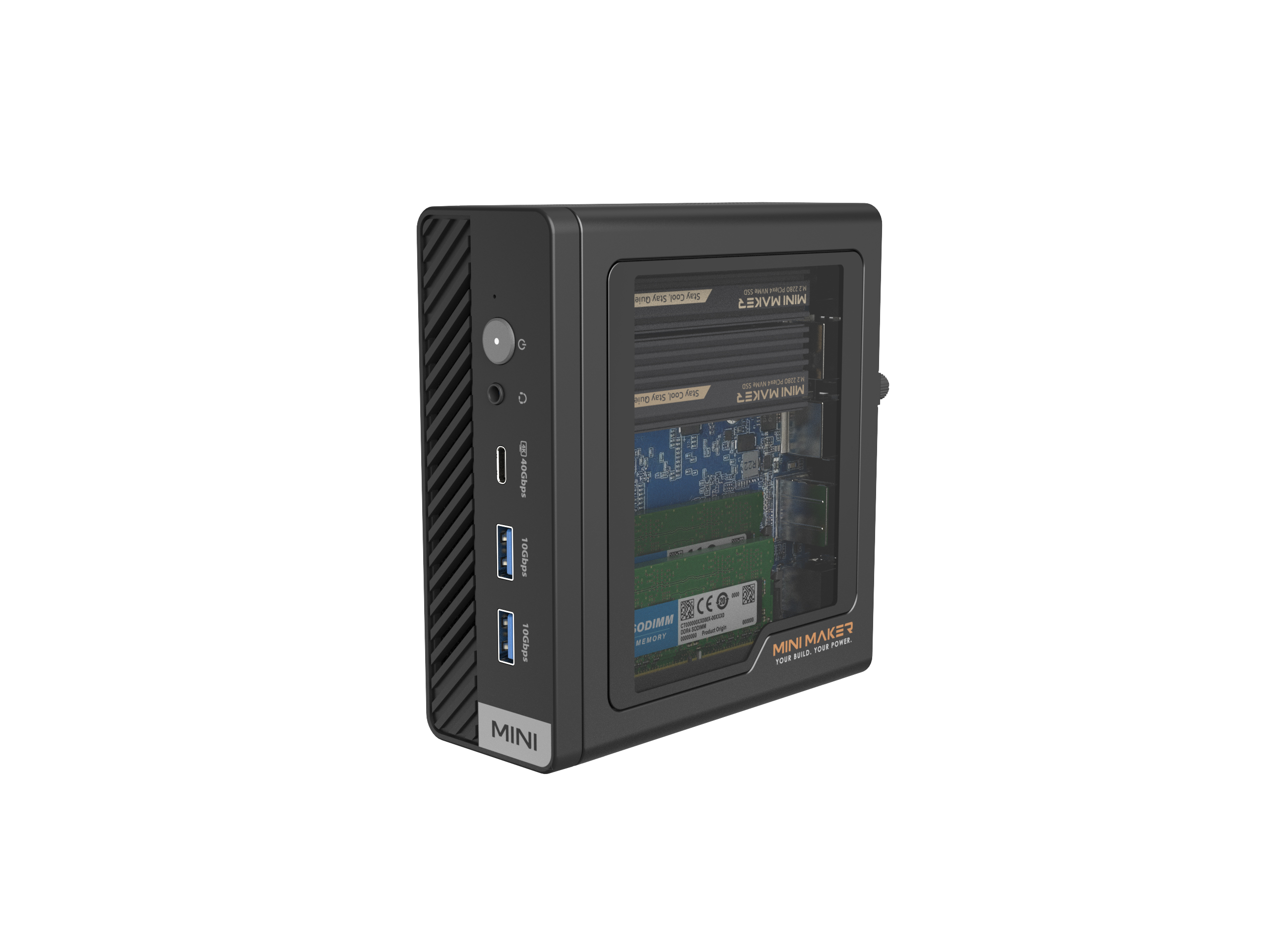

  • Color
    Two design versions: 1. Complete Black Metal; 2. Transparent Side Cover

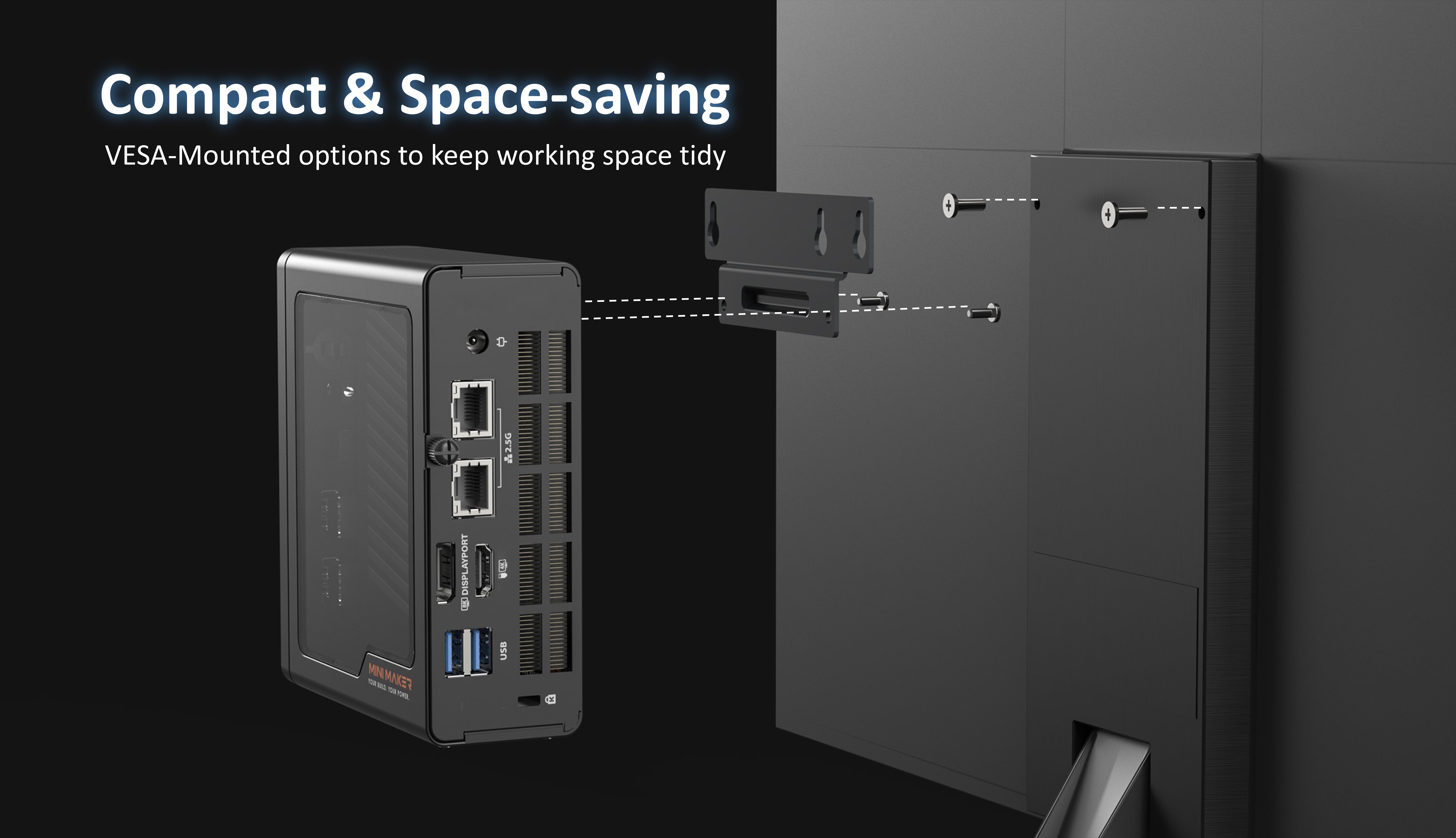

  • Accessory for Office
    75 x 75 / 100 x 100 VESA kit

CPU/Memory Support

Drivers

Intel 12th H Series

BIOS

FAQ

Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test
Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test Test

Manual

User Guide
Model Name Mini Maker Overclock Mini X (Transparent)
Design For Inte AI PC - Ultra CPU (28W CPU) Intel Core CPU / 13th / 12 th (45W CPU) Intel N Series (6W CPU) AMD Ryzen 8000 / 7000 (45W CPU)
CPU Intel Core (AI)
Ultra  9-185H, Ultra 7-155H, Ultra 5-125H		 Intel Core CPU (Series 2)
Core 9 270H, Core 7 250H, Core 7 240H, Core 5 210H
13th Gen Intel Core
i9-13900H, i7-13620H, i5-13500H, i5-13420H
12th Gen Intel Core
i9-12900H, i7-12700H, i7-12650H, i5-12500H, i5-12450H 		 Intel Alder Lake-N
N100, N200		 AMD Ryzen 8000 Series
R9 8945HS, R7 8845HS
AMD Ryzen 7000 Series
R9 7940HS, R7 7840HS
Graphics Intel Arc Graphics Intel UHD Graphics Intel UHD Graphics AMD Radeon 780M
Memory Support 2 x DDR5 5600/5200/4800 MT/s SO-DIMM (Max. 96GB)
Dual Channel Memory Architecture		 Support 2 x DDR5 4800 MT/s SO-DIMM for 12th Gen (Max. 96GB)
Support 2 x DDR5 5200/4800 MT/s SO-DIMM for 13th Gen (Max. 96GB)
Support 2 x DDR5 5600/5200/4800 MT/s SO-DIMM for Core 7/Core 9 (Max. 96GB)
Dual Channel Memory Architecture		 Support 1 x DDR4 3200/3000/2933/2666/2400/2133 MT/s SO-DIMM (Max. 16GB) Support 2 x DDR5 5600/5200/4800 MT/s SO-DIMM (Max. 96GB)
Dual Channel Memory Architecture
Storage 1 x M.2 2280 PCIe Gen4x4 from Processor, support Max. 4TB NVMe SSD (M2_SSD4 SATA support)
1 x M.2 2280 PCIe Gen4x4 from Processor, support Max. 4TB NVMe SSD (M2_SSD3 No SATA support)
Total Max. 8TB SSD

*Support 9mm Height M.2 2280 SSD Passive Heatsink for M_2_1 / M_2_2		 1 x M.2 2280 PCIe Gen4x4 from Processor, support Max. 4TB NVMe SSD (M2_SSD4 SATA support)
1 x M.2 2280 PCIe Gen4x4 from Processor, support Max. 4TB NVMe SSD (M2_SSD3 No SATA support)
Total Max. 8TB SSD

*Support 9mm Height M.2 2280 SSD Passive Heatsink for M_2_2		 1 x M.2 2280 PCIe Gen3x1 from Processor, support Max. 1TB NVMe SSD (SATA support)
Total Max. 1TB SSD

*Support 2.9mm Height M.2 2280 SSD Passive Heatsink for M_2_2		 2 x M.2 2280 PCIe Gen4x4 from Processor, support Max. 4TB NVMe SSD (No SATA support)
Total Max. 8TB SSD

*Support 9mm Height M.2 2280 SSD Passive Heatsink for M_2_2

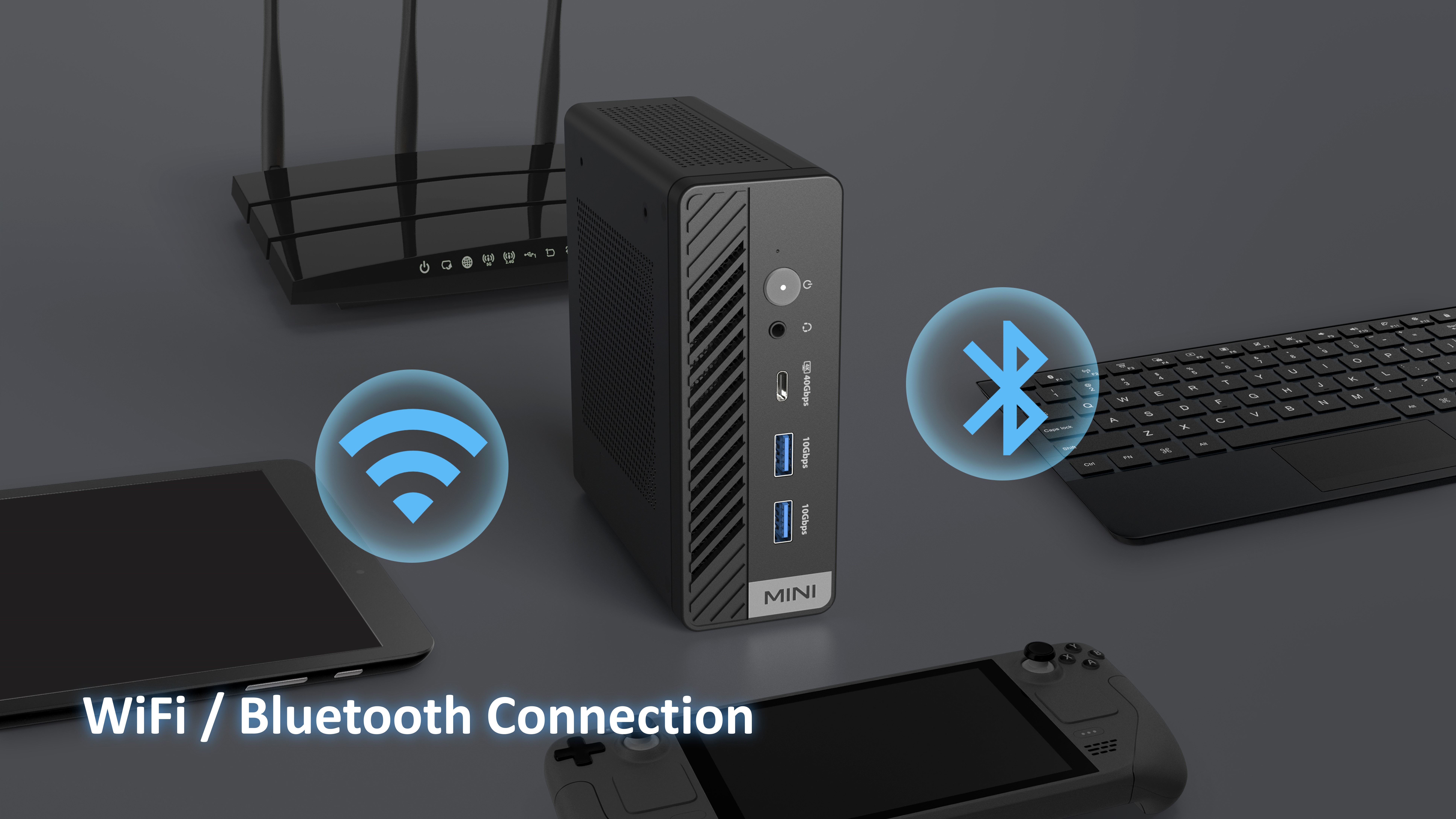

Wireless Data Network Intel Wi-Fi 7 (Gig+) 2x2+ Bluetooth 5.4 Wireless Card
Intel Wi-Fi 6E (Gig+) 2x2 + Bluetooth 5.3 Wireless Card		 Intel Wi-Fi 7 (Gig+) 2x2+ Bluetooth 5.4 Wireless Card
Intel Wi-Fi 6E (Gig+) 2x2 + Bluetooth 5.3 Wireless Card		 Intel Wi-Fi 7 (Gig+) 2x2+ Bluetooth 5.4 Wireless Card
Intel Wi-Fi 6E (Gig+) 2x2 + Bluetooth 5.3 Wireless Card		 Intel Wi-Fi 7 (Gig+) 2x2+ Bluetooth 5.4 Wireless Card
Azure Wave Wi-Fi 6E 2x2 + Bluetooth 5.2 Wireless Card
AMD Wi-Fi 6E 2x2 + Bluetooth 5.2 Wireless Card

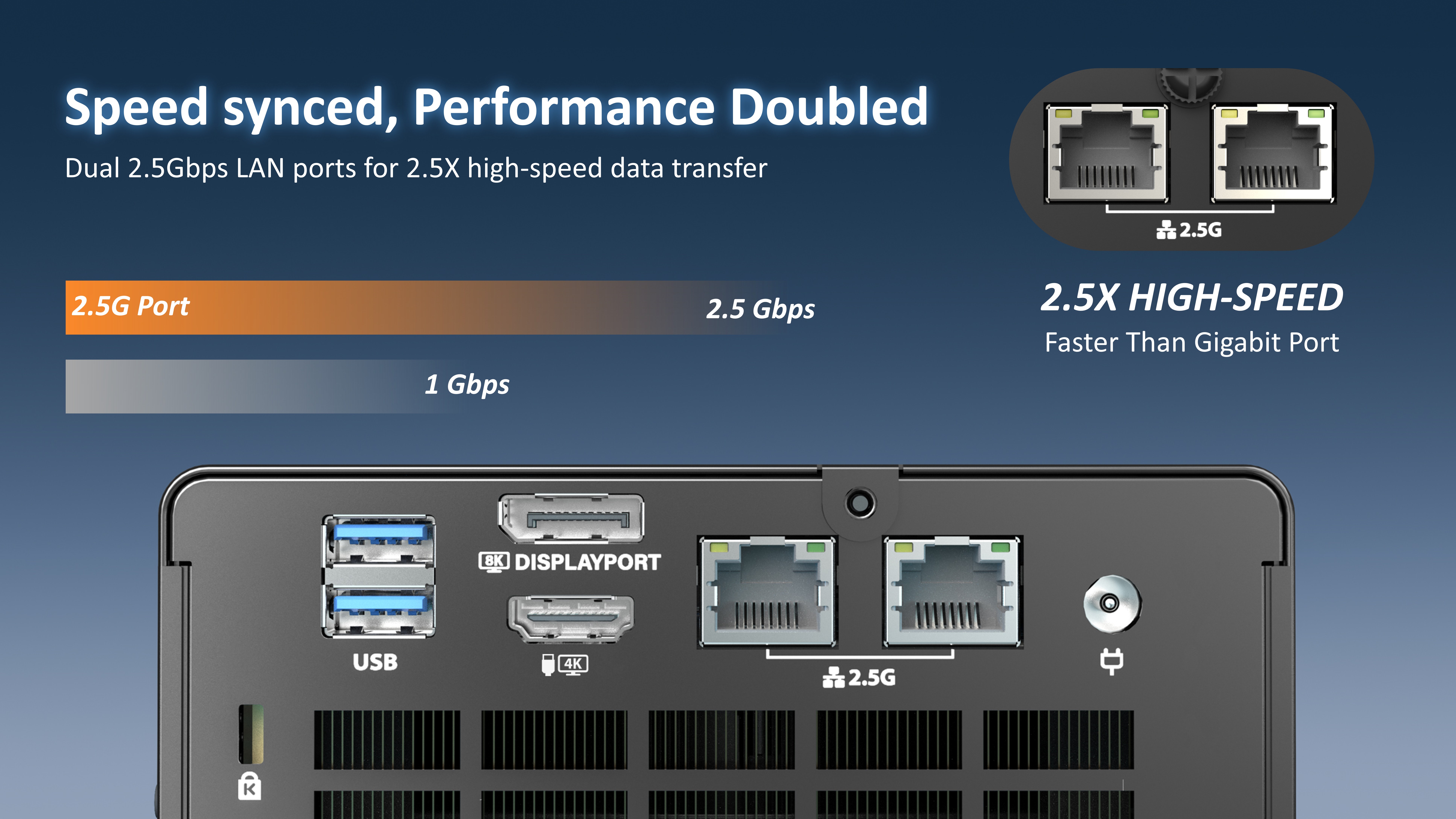

LAN 2 x 2.5Gb Ethernet 2 x 2.5Gb Ethernet 1 x 2.5Gb Ethernet
1 x 1Gb Ethernet		 2 x 2.5Gb Ethernet

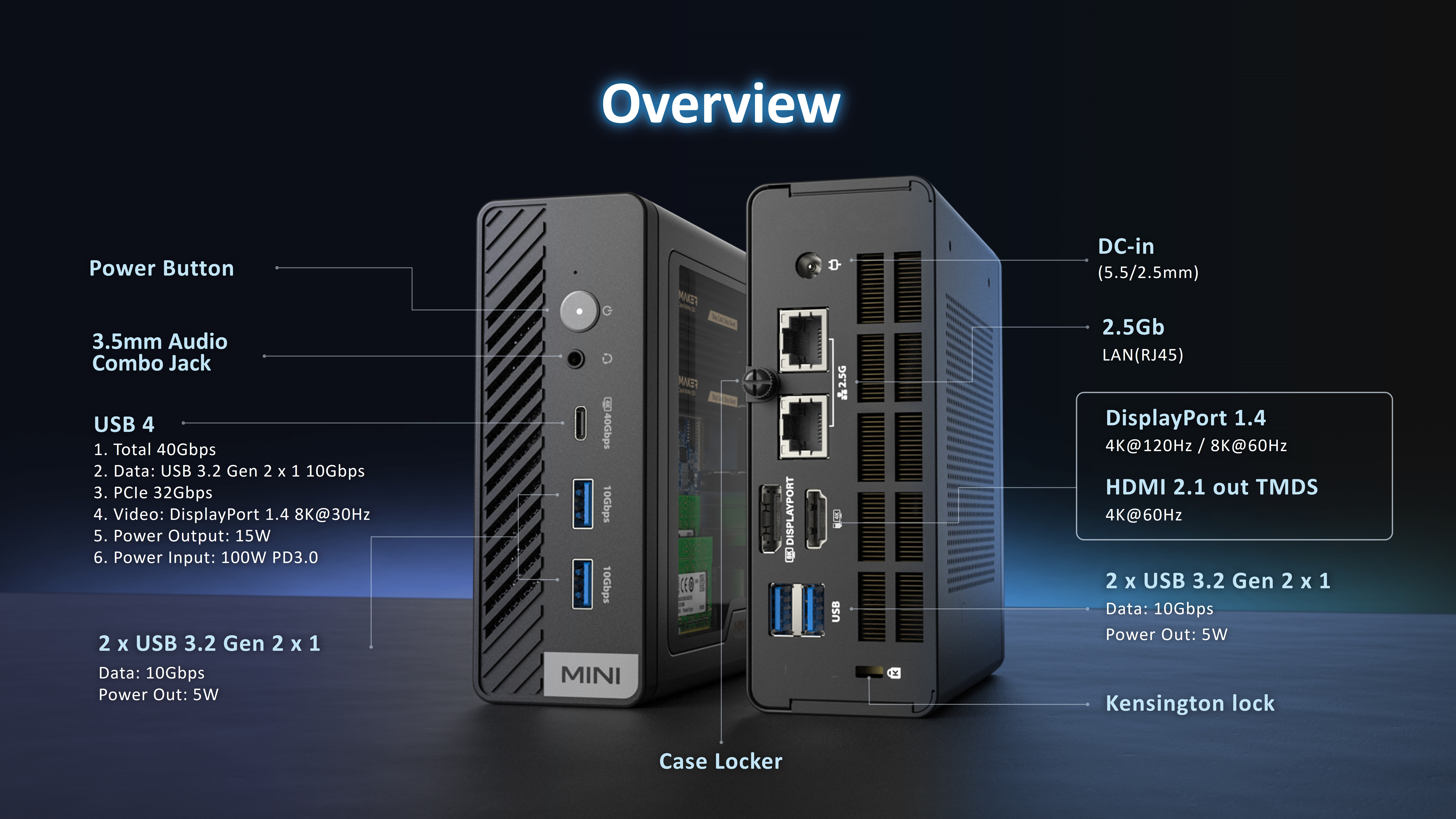

Front I/O Ports Power button
1 x USB4 Type C (Total Speed 40Gbps)*
2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x 3.5mm Audio Combo Jack

* USB4 Port includes below function:
(1) USB3.2 Gen2x1 (10Gbps)
(2) PCIe (16Gbps)
(3) DisplayPort 1.4 Out (8k@30Hz/4k@60Hz)
(4) 15W Power Output
(5) Up to 100W PD3.0 DC-in		 Power button
1 x USB4 Type C (Total Speed 40Gbps)*
2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x 3.5mm Audio Combo Jack

* USB4 Port includes below function:
(1) USB3.2 Gen2x1 (10Gbps)
(2) PCIe (16Gbps)
(3) DisplayPort 1.4 Out (8k@30Hz/4k@60Hz)
(4) 15W Power Output
(5) Up to 100W PD3.0 DC-in		 Power button
1 x Full Function Type C*
2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x 3.5mm Audio Combo Jack

* Type C Port includes below function:
(1) USB3.2 Gen2x1 (10Gbps)
(2) DisplayPort 1.4 Out (8k@30Hz; 4k@60Hz)
(3) 15W Power Output
(4) Up to 100W PD3.0 DC-in		 Power button
1 x USB4 Type C (Total Speed 40Gbps)*
2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x 3.5mm Audio Combo Jack

* USB4 Port includes below function:
(1) USB3.2 Gen2x1 (10Gbps)
(2) PCIe (16Gbps)
(3) DisplayPort 1.4 Out (8k@30Hz/4k@60Hz)
(4) 15W Power Output
(5) Up to 100W PD3.0 DC-in

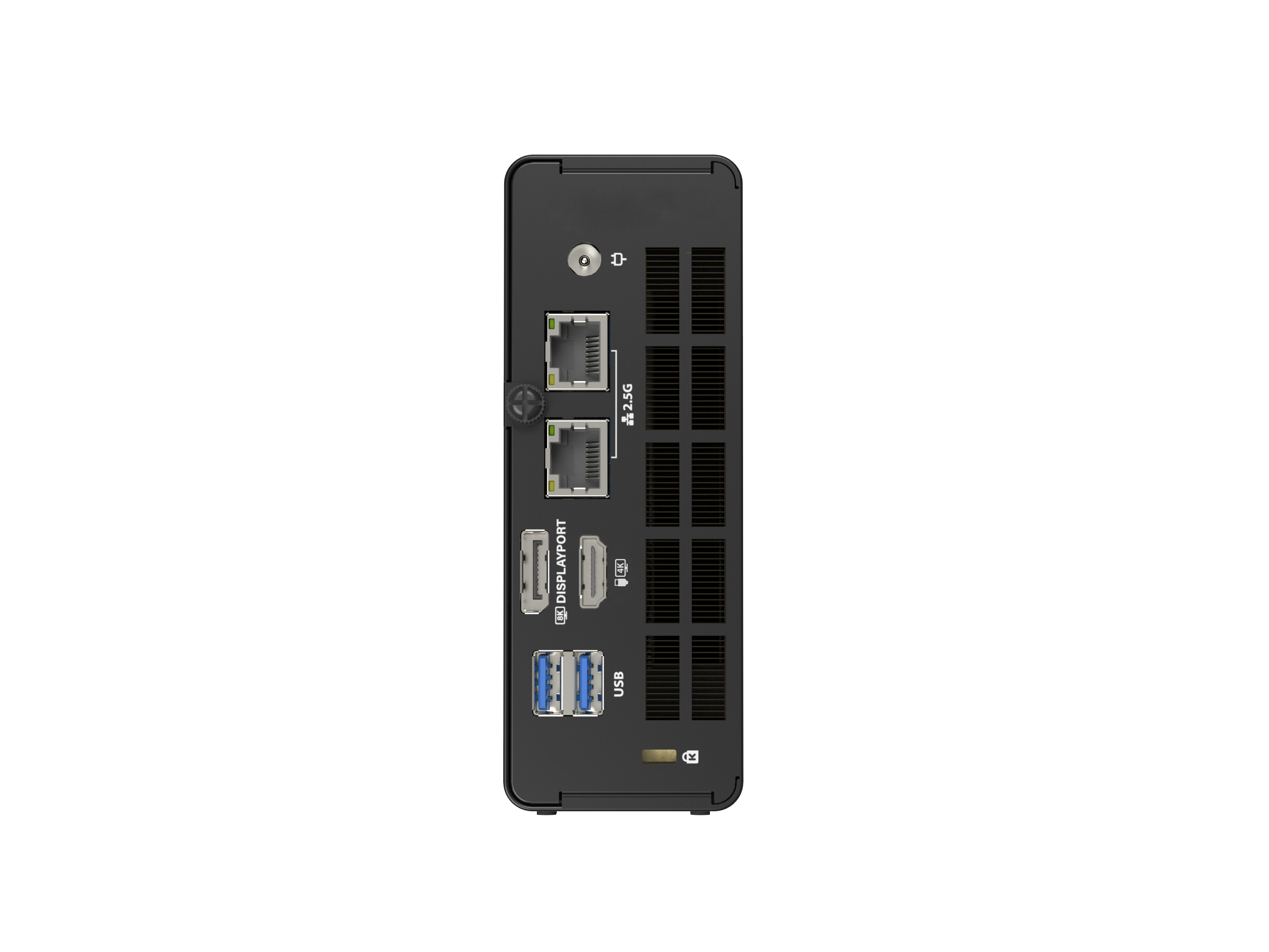

Back I/O Ports 2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x HDMI 2.1 out TMDS (4K@60Hz)
1 x DisplayPort 1.4 out (1080p/1440p max.@240Hz; 4K max.@120Hz or 144Hz (DSC))
2 x 2.5Gb Ethernet
1 x DC-in Jack (5.5/2.5mm)		 2 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x HDMI 2.1 out TMDS (4K@60Hz)
1 x DisplayPort 1.4 out (1080p/1440p max.@240Hz; 4K max.@120Hz or 144Hz (DSC))
2 x 2.5Gb Ethernet
1 x DC-in Jack (5.5/2.5mm)		 2 x USB3.2 Gen1 Type A (5Gbps/5W output)
1 x HDMI 2.1 out TMDS (4K@60Hz)
1 x DisplayPort 1.2 out (4K max.@60Hz)
1 x 1Gb Ethernet
1 x 2.5Gb Ethernet
1 x DC-in Jack (5.5/2.5mm)		 1 x USB3.2 Gen2x1 Type A (10Gbps/5W output)
1 x USB2.0 Type A (2.5W)
1 x HDMI 2.1 out TMDS (4K@60Hz)
1 x DisplayPort 1.4 out (1080p/1440p max.@240Hz; 4K max.@120Hz or 144Hz (DSC))
2 x 2.5Gb Ethernet
1 x DC-in Jack (5.5/2.5mm)
Power Supply Pocket Size FSP 120W External Power Adaptor with Power Cord Pocket Size FSP 120W External Power Adaptor with Power Cord Pocket Size FSP 65W External Power Adaptor with Power Cord Pocket Size FSP 120W External Power Adaptor with Power Cord
Dimension 52*113.6*135.4mm (0.79L) 52*113.6*135.4mm (0.79L) 52*113.6*135.4mm (0.79L) 52*113.6*135.4mm (0.79L)
Color Matt Black With Transparent Cover Matt Black With Transparent Cover Matt Black With Transparent Cover Matt Black With Transparent Cover

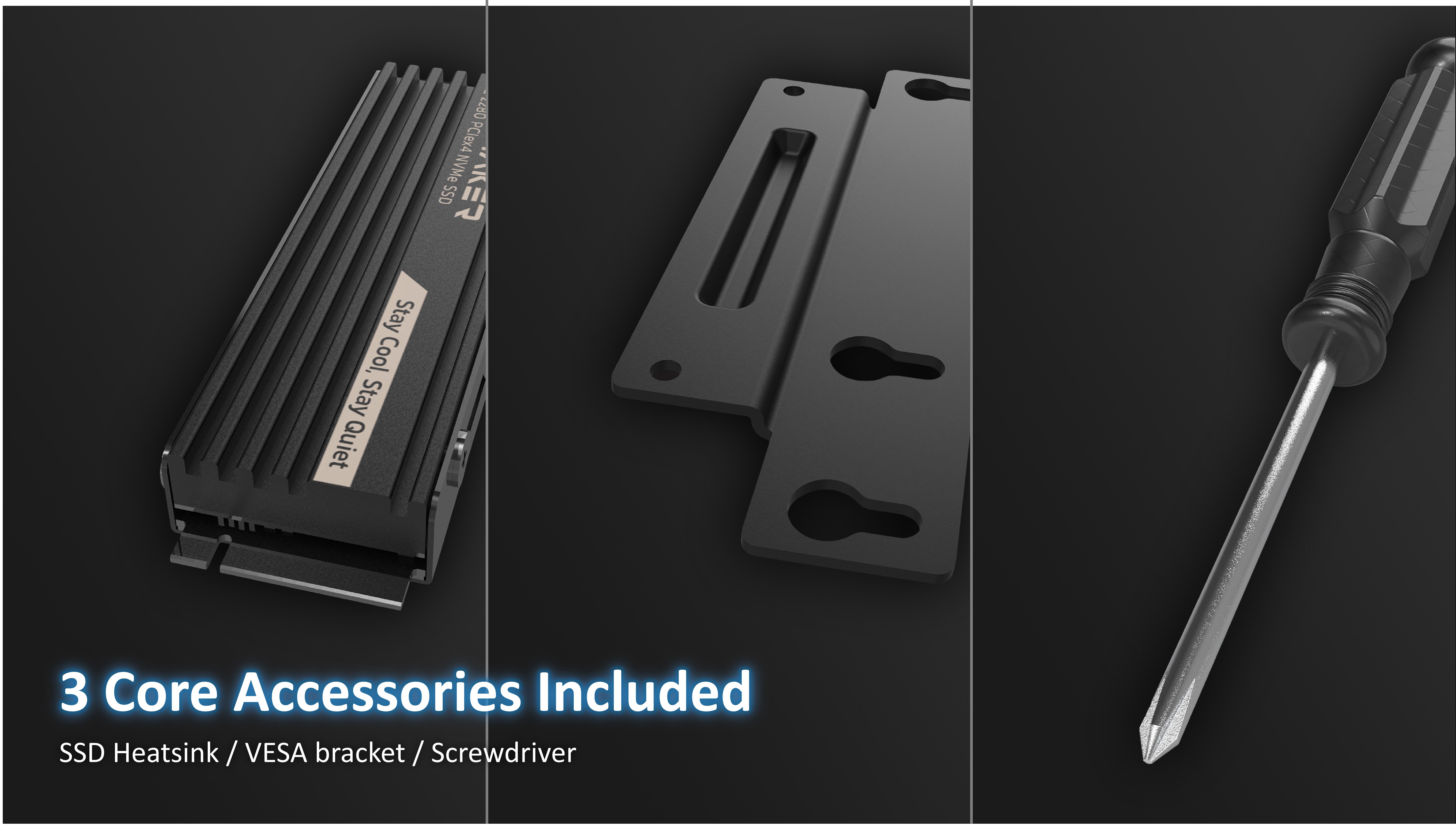

Accessories 1 x Power Adaptor + Power Cord
1 x Quick Installation Guide
1 x SPEC Card
1 x Warranty Manual
1 x Safety Instruction
1 x Screw Driver and Extra M.2 Screw/Case Screw*2
2 x 2280 SSD Heatsink and Silicone Thermal Pad Set
1 x VESA Mount Kit		 1 x Power Adaptor + Power Cord
1 x Quick Installation Guide
1 x SPEC Card
1 x Warranty Manual
1 x Safety Instruction
1 x Screw Driver and Extra M.2 Screw/Case Screw*2
2 x 2280 SSD Heatsink and Silicone Thermal Pad Set
1 x VESA Mount Kit		 1 x Power Adaptor + Power Cord
1 x Quick Installation Guide
1 x SPEC Card
1 x Warranty Manual
1 x Safety Instruction
1 x Screw Driver and Extra M.2 Screw/Case Screw*2
1 x 2280 SSD Heatsink and Silicone Thermal Pad Set
1 x VESA Mount Kit		 1 x Power Adaptor + Power Cord
1 x Quick Installation Guide
1 x SPEC Card
1 x Warranty Manual
1 x Safety Instruction
1 x Screw Driver and Extra M.2 Screw/Case Screw*2
2 x 2280 SSD Heatsink and Silicone Thermal Pad Set
1 x VESA Mount Kit
Security Kensington Lock Kensington Lock Kensington Lock Kensington Lock
Certificate CE/FCC/RoHS/CCC CE/FCC/RoHS/CCC CE/FCC/RoHS/CCC CE/FCC/RoHS/CCC
